DESCRIPTION

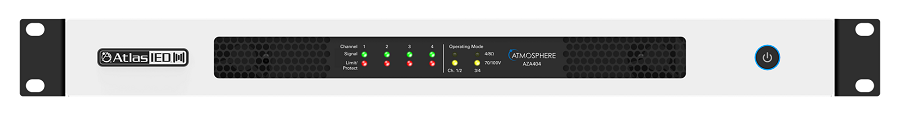

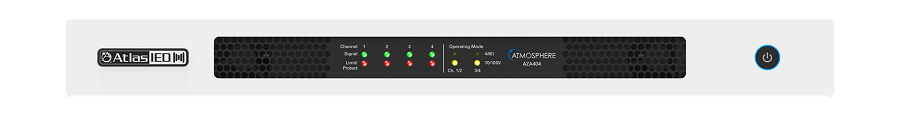

The AtlasIED Atmosphere AZA404 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4Ω/8Ω/70V/100V).
The AZA404 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.
FEATURES
70V, 100V, 8Ω, or 4Ω functionality, configurable in channel pairs
Up to 100W per channel (4 x 100W)
Four (4) balanced inputs
Web interface to change output modes and additional monitoring/processing
Optional Accessory Card Slot for a Four-Channel Dante™ Receiver (DPA-DAC4)
SPECIFICATIONS
Power Output 4 x 100-Watts @ 70.7V
Power Output 4 x 100-Watts @ 100V
Power Output 4 x 75-Watts @ 8Ω
Power Output 4 x 50-Watts @ 4Ω
Power Output 2 x 100-Watts @ 70.7V, 2 x 75-Watts @ 8Ω
Power Output 2 x 100-Watts @ 100V, 2 x 50-Watts @ 4Ω
Amplifier Topology Class AB Switching Hybrid -BASH
Input Sensitivity 750mV Balanced, 0dBU
Input impedance Balanced 40k
Maximum Input Signal +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
THD 1% @ Rated Output
Frequency Response 20Hz - 20kHz (DSP Filters Set to Flat)
Signal to Noise Ratio >100dB Below Rated output (A-Weighted)
Crosstalk 73dB @ 1kHz
Voltage 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
Rack Units 1
Height 1.75" (45mm)
Width 19" (483mm)
Depth 15.5" (394mm)
Weight 13 lbs. (5.92kg)
