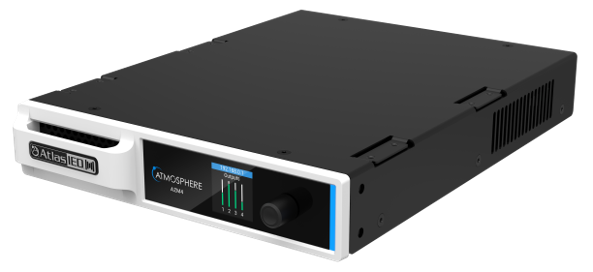

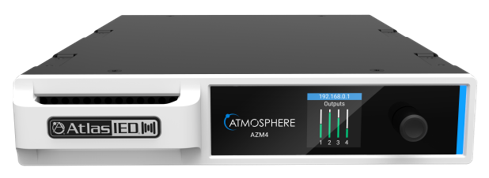

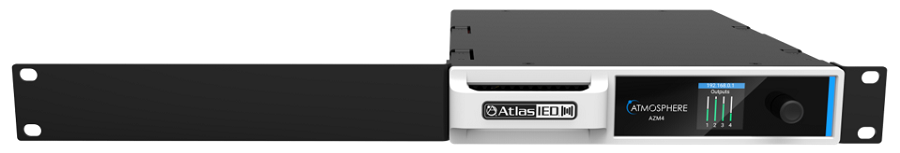

AZM4
Atmosphere™ 4 Zonen Audio Prozessor mit 8 (6+2) x 4 Matrix;

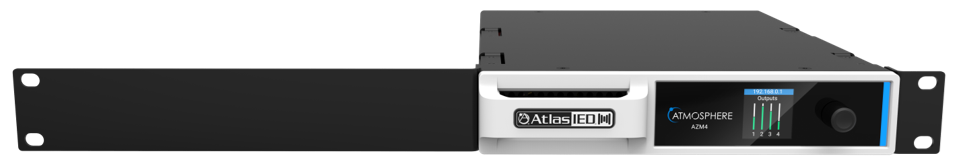

Tischversion inkl. 1HE 19" Montagewinkel
Webbrowser basierende Software zur Konfiguration, sowie Bedienung (GEM) mit Backupfile Möglichkeit (Service)
WIFI, DSP, Scenes/Presets (20 bzw. 8 per front-panel), Message Player (100 audio files and 20 messages bzw. 8 per front-panel in wav), AtlasIED Speaker Presets/Library, Event Scheduler, Auto Gain, Tilter Filter & ANC Auto Noise Compensation for all zones, Sound Masking generator

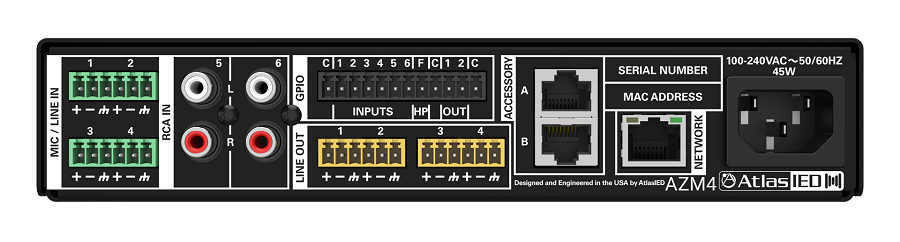

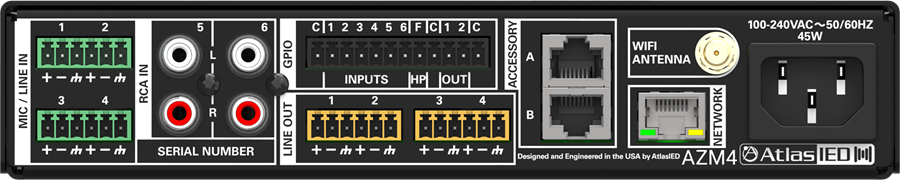

4 sym. MIC/LINE IN & 2 asym. LINE IN
2 Bedienanschlüsse für bis zu je 8 plug and play Bedienungen (max. 1 Audio per Port & 8 X-ANS bzw. 16 per AZM4/8) über eine Distanz bis zu 300m
GPIO (6 IN & 2 OUT)

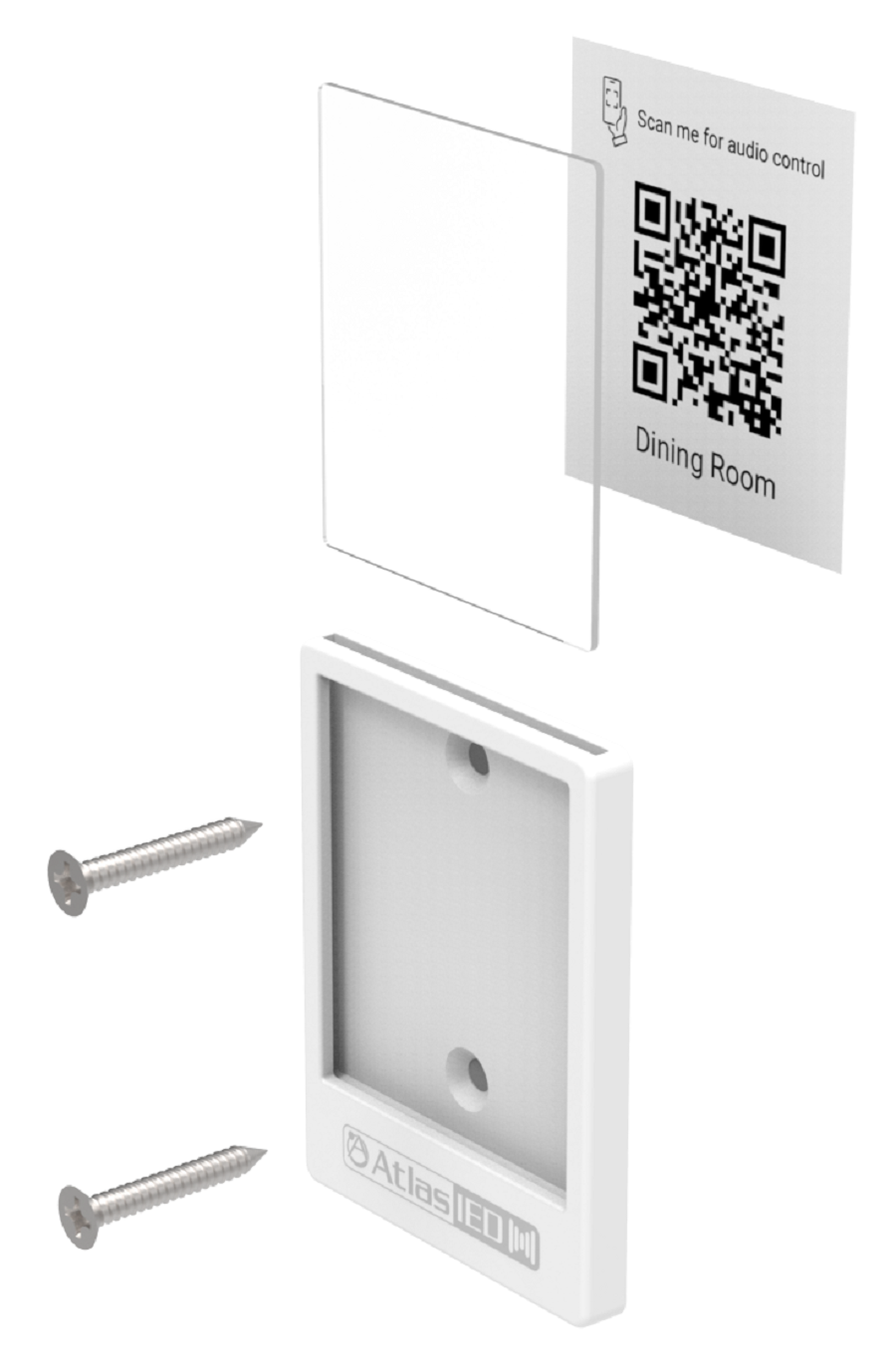

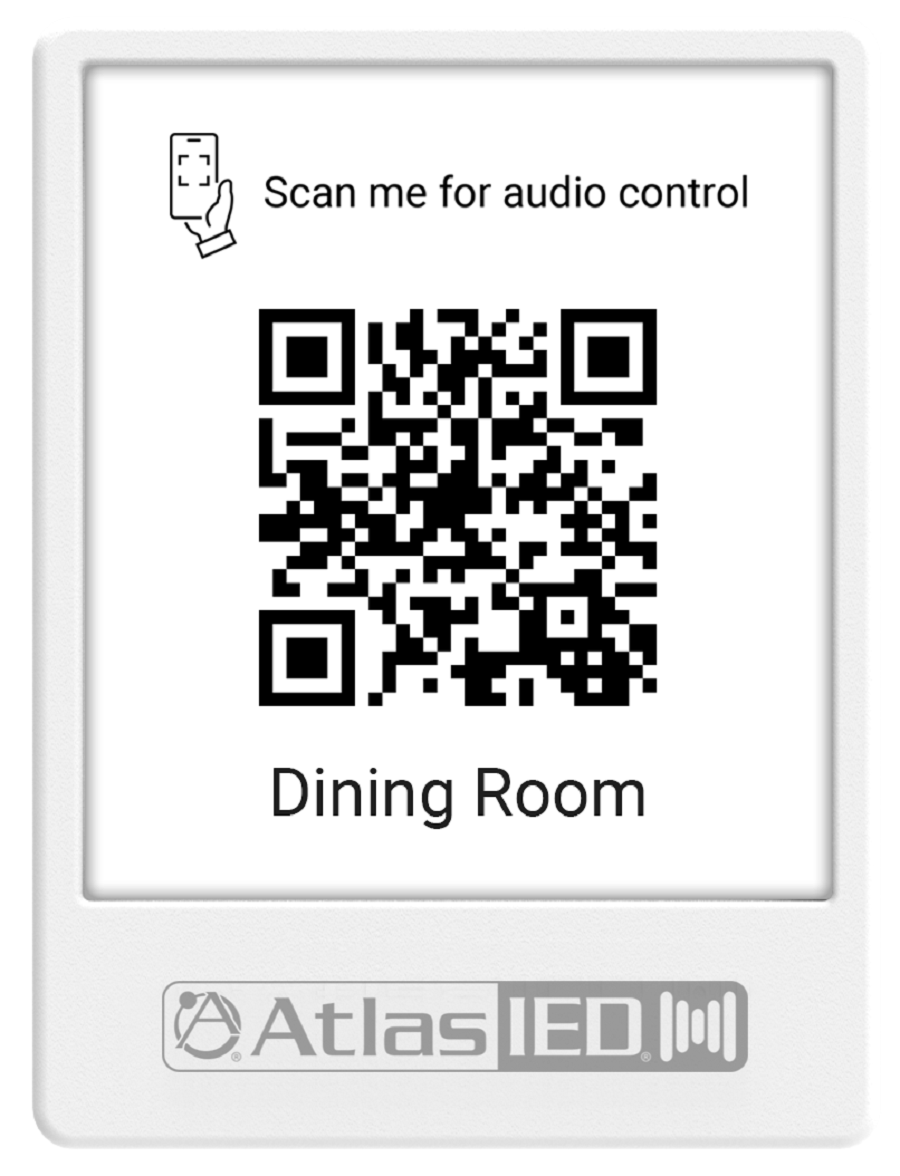

incl. 1 GEM - Virtual Wall Controller QR Code Holder
"Most Innovative Emerging Technology" in SCN's 2021 Products of the Year
The Atmosphere AZM4 is an 4-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, scheduler, and many more features, make the AZM a processing powerhouse.
The AZM4 is compatible with all six of the Atmosphere accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 2 accessory ports on the AZM4, with each port designed to work reliably up to 1000ft.

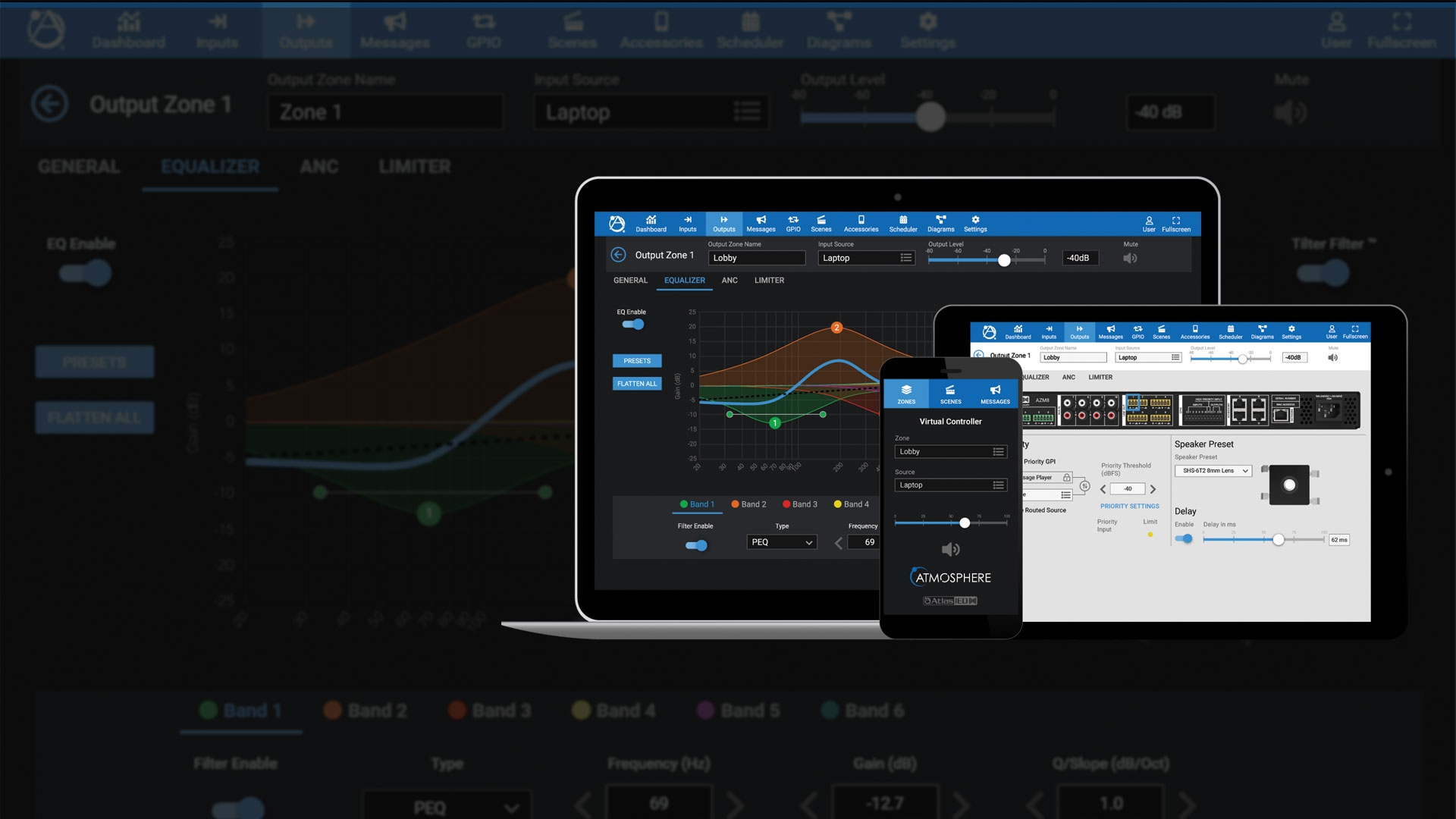

Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM4.
FEATURES
On board WIFI to use as an access point or connect to existing Wi-Fi network
2 accessory ports that support up to 8 plug and play accessories each (maximum 16 per AZM4)
Auto noise compensation available for all zones
Large library of AtlasIED speaker presets
Integrated message player
App-less virtual wall controller access via QR code
