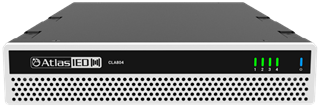

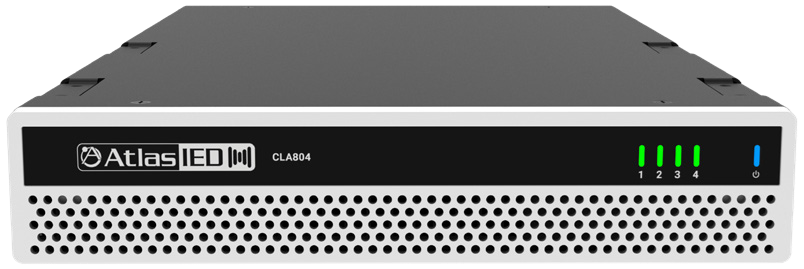

4 Channel Multi Impedance 800W Power Share Amplifier;

The AtlasIED CLA804 is a four-channel, 800W multi-impedance amplifier featuring AtlasIED's Patent-Pending Power Share technology. This innovative feature is an industry first, allowing for controllable power levels to be accurately applied to different zones regardless of the load impedance.

Designed for versatility, the CLA804 amplifier is suitable for both commercial 25V/70.7V/100V distributed systems and sound reinforcement applications requiring amplification for low impedance loads like 2, 4, or 8 ohms. The amplifier's power supply adopts a switch- mode, global auto-sensing design, ensuring a stable output even in fluctuating power conditions. The power supply and output stage are meticulously engineered to deliver exceptional dynamic high output voltage and current simultaneously to virtually any loudspeaker load.

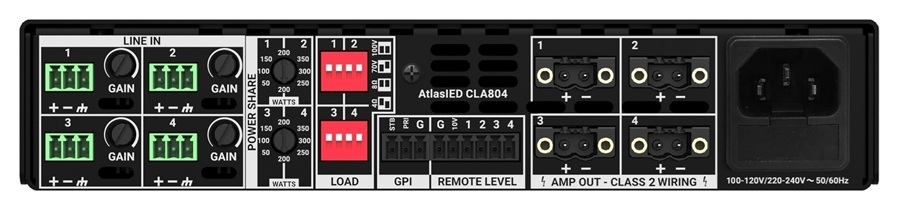

Configuring each channel's Power Share level and speaker load is fast and simplistic with the CLA amplifier. Simply select the desired power level and load type via the switches located on the rear panel.

Other key features of the CLA Series include a unique output stage with a low- resistance, direct-coupled thermal transfer design, effectively maintaining optimal temperature across all loads and output levels. Additionally, the CLA Series amplifiers are energy-efficient, meeting Energy Star standards consuming less than 1W of power in standby mode. The CLA Series amplifiers are so efficient, generating little heat, most of the time they operate in a convection cooled state. If additional cooling is required, the variable speed whisper quiet fans will engage.

Whether your application involves a large distributed constant voltage sound system, a high SPL sound reinforcement system, or both, the AtlasIED CLA Series is the solution for a multi-functional, high-power, and cost-effective amplifier.


FEATURES

4 Amplifier Channels
Load Configurations - Each Channel Configured Individually 2Ω, 4Ω, 8Ω, 25V, 70.7V, & 100V
Power Share Configurations
4 x 200W
2 x 350W / 50W
2 x 300W / 100W
2 x 250W / 150W
Energy Efficient 1W Standby GPI
Convection Cooling, Fan Assist On Demand
Priority Mute GPI
Rear Attenuators
Remote Level Control
Compact 1RU, Half Rack


SPECIFICATIONS

System
Type 4 Channel Power Amplifier
Topology Class D
Output Power 800W
# Inputs 4
GPI Ports 7, Euro Block 3.5mm
Output Speaker Terminals 4, Removable Euro Block, 5.08mm Pitch, Locking
Electrical Specifications
THD 1kHz And 1dB Below Rated Power ≤0.15%
Frequency Response 20Hz - 20kHz (+0/-1.5dB) 2,4, 8-Ohm, 25V Mode, 50Hz - 20KHz (+0/-1.5dB) 70V & 100V Mode
Signal To Noise Ratio 8 Ohm >93dBA Below Rated Output (A-Weighted)
Cooling Idle Mode: Convection, Audio Signal Sense: Fan, Variable
Dimensions And Weight
Rack Space 1 RU, 8.5" Wide (half rack)
Dimensions (HxWxD) 1.75" x 8.75" x 13.5" (44mm x 222mm x 343mm)
Shipping Dimensions (HxWxD) 4.5" x 17.25" x 11.75" (114mm x 438mm x 298mm)
Weight 8 lbs. (3.64kg)
Shipping Weight 11.2 lbs. (5.06kg)
Warranty Period 36 months from date of purchase
